Hegawa FastFit Grip Plus Range Coupling

Complete with EPDM gaskets, Stainless Steel Bolts and Nuts, POM (polioxide methylene) gripper elements with steel rivets. Epoxy coated (blue colour) 200 microns

Hegawa FastFit Grip Plus Range Couplings

Complete with EPDM gaskets, Stainless Steel Bolts and Nuts
POM (polioxide methylene) gripper elements with steel rivets
Epoxy coated (blue colour) 200 microns.

Hegawa FastFit Grip Plus Range Couplings

The Hegawa FastFit Plus Range Grip couplings are a range of universal gripping products from DN 50 u.t.i. DN 400 which enables you to make locking connections on steel, ductile iron, cast iron, asbestos cement, GRP, PE and PVC pipes from 39 mm o.d. u.t.i. 430 mm o.d.

Nominal Size Clear filter 50 65 80 100 125 150 175 200 225 250 300 350 400	Pipe outside diameter range in mm Clear filter 39-52 49-64 63-83 72-93 78-103 87-117 100-130 117-147 138-168 152-182 172-202 198-228 217-257 245-285 300-340 340-380 390-430	Product Code Hegawa Clear filter PG.C.0039.E.S PG.C.0049.E.S PG.C.0063.E.S PG.C.0072.E.S PG.C.0078.E.S PG.C.0087.E.S PG.C.0100.E.S PG.C.0117.E.S PG.C.0138.E.S PG.C.0152.E.S PG.C.0172.E.S PG.C.0198.E.S PG.C.0217.E.S PG.C.0245.E.S PG.C.0300.E.S PG.C.0340.E.S PG.C.0390.E.S	L1 Clear filter 231 233 244 250 253 257 258 288 300 383 mm	L2 Clear filter 250 286 299 330 359 440 mm	H Clear filter 162 175 209 217 229 243 256 273 294 308 325 354 392 434 479 519 571 mm	E min. Clear filter 90 105 115 130 150 mm	E max. Clear filter 115 133 140 155 170 210 mm	C min. Clear filter 20 mm	Insert Clear filter 175 200 225 mm	Bolt Clear filter 6 x M12 8 x M12 8 x M16 12 x M16 16 x M16	Sleutel Clear filter 19 mm 24 mm	Torque Clear filter 50 - 70 Nm 90 - 120 Nm	Weight kg Clear filter 6 12 13 14 15 16 19 21 23 28 32 39 51 55 70
			mm	mm	mm	mm	mm	mm	mm
50	39-52	PG.C.0039.E.S	233	250	162	90	115	20	175	6 x M12	19 mm	50 - 70 Nm	6
50	49-64	PG.C.0049.E.S	231	250	175	90	115	20	175	6 x M12	19 mm	50 - 70 Nm	6
65	63-83	PG.C.0063.E.S	258	286	209	105	133	20	175	8 x M12	19 mm	50 - 70 Nm	12
80	72-93	PG.C.0072.E.S	257	286	217	105	133	20	175	8 x M12	19 mm	50 - 70 Nm	13
80	78-103	PG.C.0078.E.S	250	286	229	105	133	20	175	8 x M12	19 mm	50 - 70 Nm	14
100	87-117	PG.C.0087.E.S	244	286	243	105	133	20	175	8 x M12	19 mm	50 - 70 Nm	15
100	100-130	PG.C.0100.E.S	253	299	256	105	140	20	175	8 x M16	24 mm	90 - 120 Nm	16
125	117-147	PG.C.0117.E.S	253	299	273	105	140	20	175	8 x M16	24 mm	90 - 120 Nm	19
150	138-168	PG.C.0138.E.S	253	299	294	105	140	20	175	8 x M16	24 mm	90 - 120 Nm	21
150	152-182	PG.C.0152.E.S	288	330	308	115	155	20	200	8 x M16	24 mm	90 - 120 Nm	21
175	172-202	PG.C.0172.E.S	288	330	325	115	155	20	200	8 x M16	24 mm	90 - 120 Nm	23
200	198-228	PG.C.0198.E.S	288	330	354	115	155	20	200	12 x M16	24 mm	90 - 120 Nm	28
225	217-257	PG.C.0217.E.S	300	359	392	130	170	20	225	12 x M16	24 mm	90 - 120 Nm	32
250	245-285	PG.C.0245.E.S	383	440	434	150	210	20	225	16 x M16	24 mm	90 - 120 Nm	39
300	300-340	PG.C.0300.E.S	383	440	479	150	210	20	225	16 x M16	24 mm	90 - 120 Nm	51
350	340-380	PG.C.0340.E.S	383	440	519	150	210	20	225	16 x M16	24 mm	90 - 120 Nm	55
400	390-430	PG.C.0390.E.S	383	440	571	150	210	20	225	16 x M16	24 mm	90 - 120 Nm	70

Hegawa FastFit Grip Plus Range Couplings

Quality

Explore our other products

Explore our extensive range of pipeline accessories.

View all

Hegawa Repair Clamp HS-C - Pipe Repair Solution

Hegawa Torcofix K Torque Wrench - Pipe Repair Solution

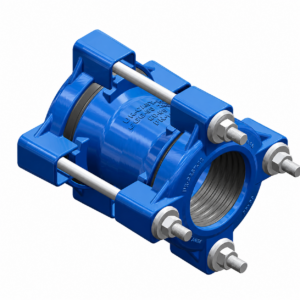

Hegawa FastFit Extra Wide Range Reducing Couplings - Pipe Coupling
