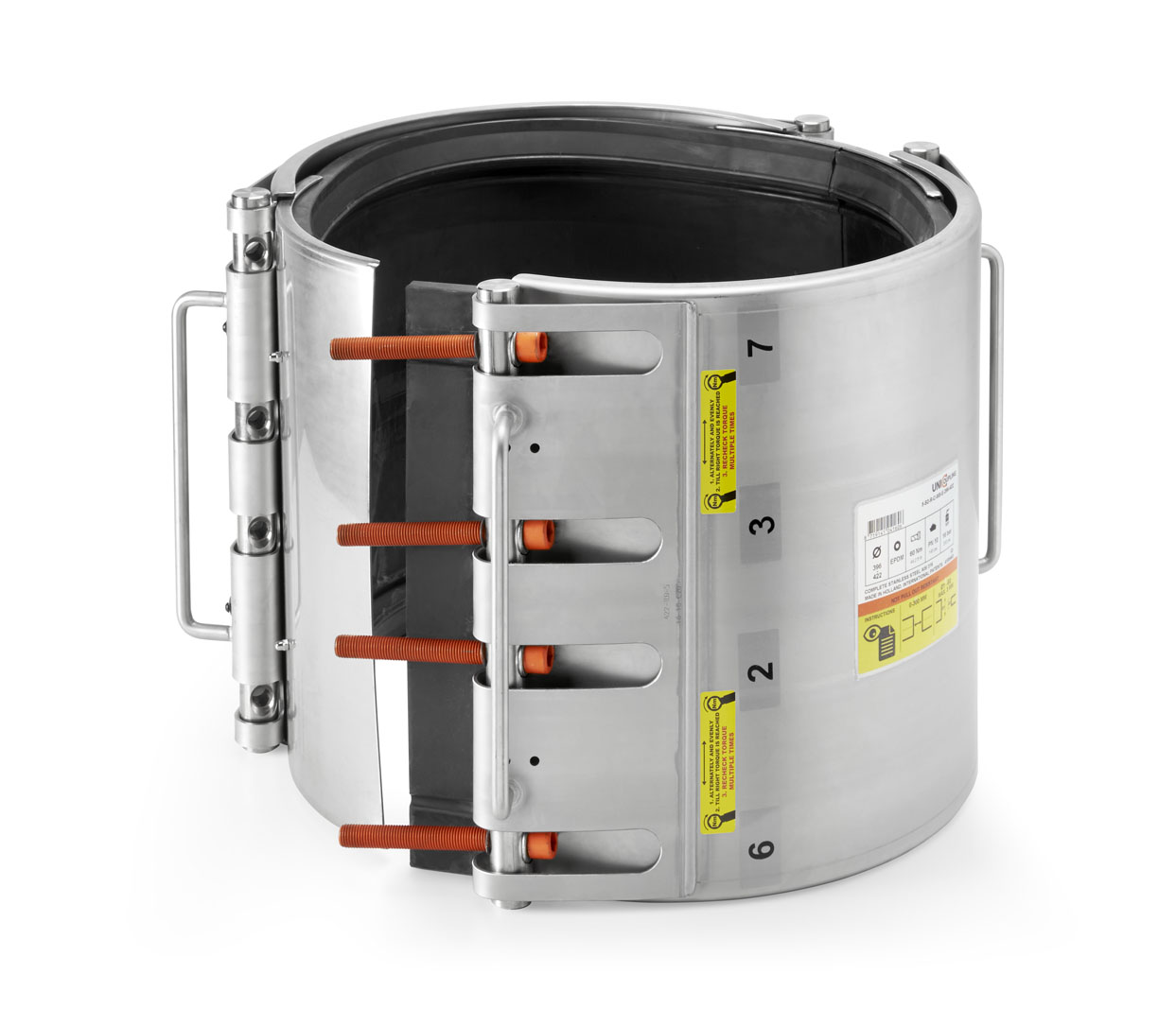

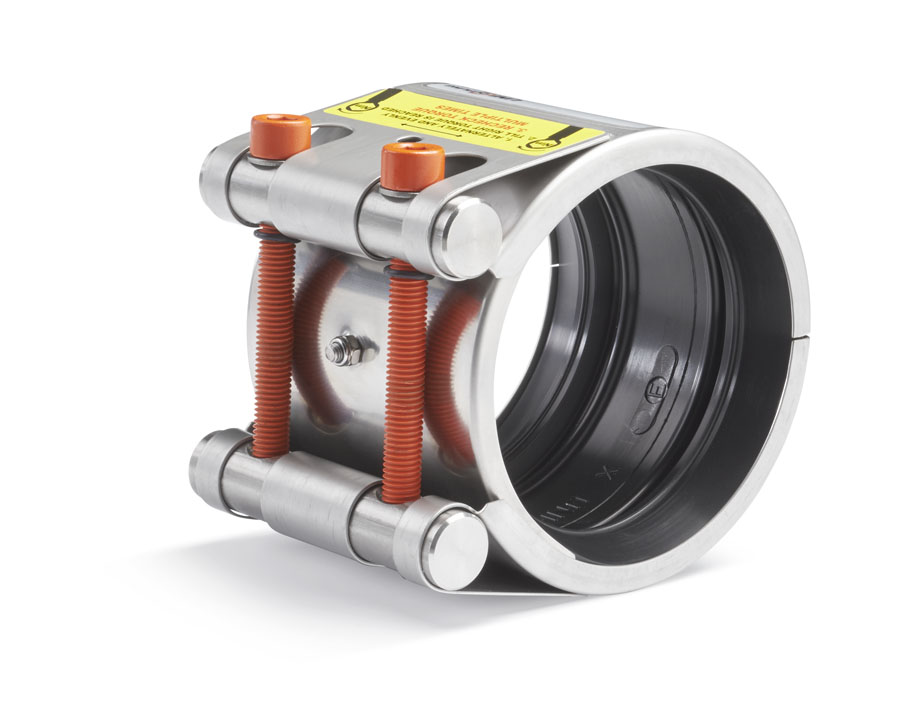

UNI-REP couplings

UNI-Rep couplings are non-restraint repair couplings. They are used to connect and/or seal damaged metal and plastic pipes. Easily pulled around a leaking pipe to seal a fracture Popular choice for emergency repairs in buildings and industrial units Excellent value for money as significant installation time saving can be achieved

UNI-REP couplings

Quality: W5 (standard), W2 (on request)
Sealing: EPDM & NBR (standard), VITON (on request)
Temparature: -30 degrees Celsius up to +180 degrees Celsius
Medium: Water, Gas, Petroleum, Helium
Pipe material: Steel, Cast Iron, PE, PVC-C, PVC-U, ABS, PP, PB

Follow fitting/disassembly instructions
The pressure values are valid for radial rigid carbon steel pipes with a minimal wall thickness under static loads
Strip inserts are required for special applications
Free from paint wetting disruptive substances

No time consuming repairs with our light-weight repair coupling

UNI-REP couplings

Working pressure for industrial and land-based applications with 1.5x safety factor in bars and for marine applications with 4x safety factor in bars

Article no. Clear filter * E for EPDM, N for NBR, (V for VITON, Price on request) 1-S-R-W5--33-36 1-S-R-W5--36-39 1-S-R-W5--39-43 1-S-R-W5--43-47,5 1-S-R-W5--47,5-52,5 1-S-R-W5--52,5-58 1-S-R-W5--58-64 1-S-R-W5--64-72 1-S-R-W5--72-80 1-S-R-W5--80-88 1-S-R-W5--88-96 1-S-R-W5--97-105 1-S-R-W5--104-112 1-S-R-W5--112-120 1-S-R-W5--122-130 1-S-R-W5--129-137 1-S-R-W5--137-145 1-S-R-W5--149-157 1-S-R-W5--157-165 1-S-R-W5--164-172 2-S2-R-A-W5--172-198 2-S2-R-A-W5--197-223 2-S2-R-A-W5--221-247 2-S2-R-A-W5--250-276 2-S2-R-A-W5--264-290 2-S2-R-A-W5--275-301 2-S2-R-A-W5--302-328 2-S2-R-A-W5--327-353 2-S2-R-A-W5--348-374 2-S2-R-A-W5--374-400 2-S2-R-A-W5--399-425 2-S2-R-A-W5--425-451 2-S2-R-A-W5--447-473 2-S2-R-A-W5--475-501 2-S2-R-A-W5--490-516 2-S2-R-A-W5--507-533 2-S2-R-A-W5--533-559 2-S2-R-A-W5--558-584 2-S2-R-A-W5--587-613 2-S2-R-A-W5--615-641 2-S2-R-A-W5--635-661 2-S2-R-A-W5--663-689 2-S2-R-A-W5--687-713 2-S2-R-A-W5--704-730 2-S2-R-A-W5--719-745 2-S2-R-A-W5--756-782 2-S2-R-A-W5--782-808 2-S2-R-A-W5--806-832 2-S2-R-A-W5--828-854 2-S2-R-A-W5--856-882 2-S2-R-A-W5--882-908 2-S2-R-A-W5--904-930 2-S2-R-B-W5--172-198 2-S2-R-B-W5--197-223 2-S2-R-B-W5--221-247 2-S2-R-B-W5--250-276 2-S2-R-B-W5--275-301 2-S2-R-B-W5--302-328 2-S2-R-B-W5--327-353 2-S2-R-B-W5--507-533 2-S2-R-B-W5--533-559 2-S2-R-B-W5--558-584 2-S2-R-B-W5--587-613 2-S2-R-B-W5--615-641 2-S2-R-B-W5--635-661 2-S2-R-B-W5--663-689 2-S2-R-B-W5--687-713 2-S2-R-B-W5--704-730 2-S2-R-B-W5--719-745 2-S2-R-B-W5--756-782 2-S2-R-B-W5--782-808 2-S2-R-B-W5--806-832 2-S2-R-B-W5--828-854 2-S2-R-B-W5--856-882 2-S2-R-B-W5--882-908 2-S2-R-B-W5--904-930 2-S2-R-B-W5--936-962 2-S2-R-B-W5--961-987 2-S2-R-B-W5--984-1010 2-S2-R-B-W5--1004-1030 2-S2-R-B-W5--1044-1070 2-S2-R-B-W5--1076-1102 2-S2-R-B-W5--1104-1130 2-S2-R-C-W5--275-301 2-S2-R-C-W5--302-328 2-S2-R-C-W5--327-353 2-S2-R-C-W5--348-374 2-S2-R-C-W5--374-400 2-S2-R-C-W5--399-425 2-S2-R-C-W5--425-451 2-S2-R-C-W5--447-473 2-S2-R-C-W5--475-501 2-S2-R-C-W5--490-516 2-S2-R-C-W5--507-533 2-S2-R-C-W5--533-559 2-S2-R-C-W5--558-584 2-S2-R-C-W5--587-613 2-S2-R-C-W5--615-641 2-S2-R-C-W5--635-661 2-S2-R-C-W5--663-689 2-S2-R-C-W5--687-713 2-S2-R-C-W5--704-730 2-S2-R-C-W5--719-745 2-S2-R-C-W5--756-782 2-S2-R-C-W5--782-808 2-S2-R-C-W5--806-832 2-S2-R-C-W5--828-854 2-S2-R-C-W5--856-882 2-S2-R-C-W5--882-908 2-S2-R-C-W5--904-930 2-S2-R-C-W5--936-962 2-S2-R-C-W5--961-987 2-S2-R-C-W5--984-1010 2-S2-R-C-W5--1004-1030 2-S2-R-C-W5--1044-1070 2-S2-R-C-W5--1076-1102 2-S2-R-C-W5--1104-1130 2-S2-R-G-W5--348-374 2-S2-R-G-W5--374-400 2-S2-R-G-W5--399-425 2-S2-R-G-W5--425-451 2-S2-R-G-W5--447-473 2-S2-R-G-W5--475-501 2-S2-R-G-W5--490-516 2-S2-R-G-W5--507-533 2-S2-R-G-W5--533-559 2-S2-R-G-W5--558-584 2-S2-R-G-W5--587-613 2-S2-R-G-W5--615-641 2-S2-R-G-W5--635-661 2-S2-R-G-W5--663-689 2-S2-R-G-W5--687-713 2-S2-R-G-W5--704-730 2-S2-R-G-W5--719-745 2-S2-R-G-W5--756-782 2-S2-R-G-W5--782-808 2-S2-R-G-W5--806-832 2-S2-R-G-W5--828-854 2-S2-R-G-W5--856-882 2-S2-R-G-W5--882-908 2-S2-R-G-W5--904-930 2-S2-R-G-W5--936-962 2-S2-R-G-W5--961-987 2-S2-R-G-W5--984-1010 2-S2-R-G-W5--1004-1030 2-S2-R-G-W5--1044-1070 2-S2-R-G-W5--1076-1102 2-S2-R-G-W5--1104-1130 2-S3-R-B-W5--1138-1177 2-S3-R-B-W5--1192-1231 2-S3-R-B-W5--1241-1280 2-S3-R-B-W5--1331-1370 2-S3-R-B-W5--1413-1452 2-S3-R-B-W5--1432-1471 2-S3-R-C-W5--1138-1177 2-S3-R-C-W5--1192-1231 2-S3-R-C-W5--1241-1280 2-S3-R-C-W5--1331-1370 2-S3-R-C-W5--1413-1452 2-S3-R-C-W5--1432-1471 2-S3-R-C-W5--1529-1568 2-S3-R-G-W5--1138-1177 2-S3-R-G-W5--1192-1231 2-S3-R-G-W5--1241-1280 2-S3-R-G-W5--1331-1370 2-S3-R-G-W5--1413-1452 2-S4-R-C-W5--1620-1672 2-S4-R-C-W5--1827-1879 2-S4-R-C-W5--2000-2052 2-S4-R-C-W5--2038-2090	OD Ø min. Clear filter 33 36 39 43 47,5 52,5 58 64 72 80 88 97 104 112 122 129 137 149 157 164 172 197 221 250 264 275 302 327 348 374 399 425 447 475 490 507 533 558 587 615 635 663 687 704 719 756 782 806 828 856 882 904 936 961 984 1004 1044 1076 1104 1138 1192 1241 1331 1413 1432 1529 1620 1827 2000 2038	OD Ø max. Clear filter 36 39 43 47,5 52,5 58 64 72 80 88 96 105 112 120 130 137 145 157 165 172 198 223 247 276 290 301 328 353 374 400 425 451 473 501 516 533 559 584 613 641 661 689 713 730 745 782 808 832 854 882 908 930 962 987 1010 1030 1070 1102 1130 1177 1231 1280 1370 1452 1471 1568 1672 1879 2052 2090	OD Ø Nominal Clear filter 33,7/35 38 42,4 44,5 48,3 54/57 60,3/63 66,6/68/69/70 73/76,1/79,5 84 88,9 98/100,6/101,6/104 104,8/108/110 114,3/118 125/127/129 130,2/131/133 139,7/141,3/141,6 154/155 159 165/168,3 185/187/190/191/193,7/195/196/197 211/212/215/216/217/219,1/220/222 236/238/240/241/242/244/244,5/246 264/268/267/271/272/273,1/274/275 278/280/284/286/287/288/289 290/292/295/296/298/300 315/316/318/320/321/323,9/326/327 340/342/343/345/346/348/350/352 367/368/372 388/392/394/395/396/398/399 419/420/421 439/440/441/442/444/448/450 464/468/470 490/492/494/496/498/500 504/506/507/508/510/512/514/515 520/521/524/526/530/532 546/548/549/550/558 571/572/574/576/582/583 600/605/606/609,6/610/612 630/632/633/634/635/640 650/651/654/655/658/659/660 676/677/678/680/686/688 702,6/705/710/711,2 718/720/726/729 734/735/738/743/744 760/761/762/768/769/770/773/780 784/786/790/798/800/801/806 807,2/808/812,8/820/822/824/826/830 832/840/842/848/852 859,5/864/868/869/879/880 886/891/896/900/903/905,8 912,4/914,4/915/920/924/927/928 940/945/950/951/952/956/960 964,2/965/970/977/978/984,5 989/990/992/996/1000/1008 1015/1016/1020/1024/1027 1044/1048/1054/1057/1068,3 1080/1086/1090,2/1100 1118/1120,6/1128 1143/1144/1152/1167/1172,5/1174 1200/1220/1228 1255/1256/1261/1276,6 1358 1420/1422/1449 1462/1468 1560/1565 1620/1626/1640/1668 1820/1829/1844/1875 2020/2032/2048 2082	Industrial and land-based Clear filter 6 10 16 25 Pressure PN	Marine Clear filter 2,5 6 10 16 Pressure PN	≈ b Clear filter 45 60 75 95 110 138 140 142 146	cmax Clear filter 10 15 25 30 40	≈ d Clear filter 54 66 74 85 108 124 141 158 178 186 197 205 212 236 261 285 314 328 339 366 391 412 438 463 489 511 539 554 575 601 626 655 683 703 731 755 772 787 824 850 874 896 924 950 972 1004 1029 1052 1072 1116 1148 1176 1223 1277 1326 1416 1498 1517 1614 1718 1925 2098 2136	≈ H Clear filter 84 104 112 125 164 170 187 202 230 238 249 255 262 287 311 340 354 365 392 417 438 464 489 515 537 565 580 603 629 654 683 711 731 759 783 800 815 852 878 902 924 952 978 1000 1032 1057 1080 1100 1146 1178 1206 1253 1307 1356 1446 1528 1547 1644 1748 1955 2128 2166	M Clear filter M6 M8 M10 M12 M16	Weight kg Clear filter 0,2 0,4 0,6 1 1,1 1,2 2,1 2,2 2,3 2,4 6,8 6,41 6,61 7,02 7,8 7,14 7,22 7,44 7,63 8 8,1 8,2 8,8 8,39 8,41 8,58 8,74 8,92 9,05 9,37 9,67 10,84 11,27 11,67 11,85 12,01 12,16 12,43 12,46 12,81 12,83 13,6 13,15 13,25 13,39 13,73 14,02 14,05 14,23 14,29 14,41 14,57 14,74 14,94 14,99 15,05 15,34 15,39 15,45 15,61 15,85 15,92 15,94 16,1 16,3 16,9 16,26 16,35 16,52 16,63 16,75 17,08 17,38 17,41 17,46 17,74 17,84 17,98 18,03 18,41 18,58 18,83 19,22 19,28 19,57 19,66 20,02 20,08 20,44 20,74 20,79 21,31 21,36 21,71 22,08 22,09 22,4 22,79 23,04 23,29 23,56 23,99 24,01 24,6 25,02 25,4 25,85 26,08 26,54 26,73 27,17 27,33 27,68 27,72 27,88 28,55 28,58 28,82 29,7 29,23 29,34 29,79 30,46 30,59 30,79 31,21 31,48 31,79 32,11 32,29 32,41 32,96 33,3 34,1 34,8 34,31 36,78 39,03 39,21 39,55 40,57 41,8 44,05 46,11 59,1 62,71 70,66 77,31 78,77
				Pressure PN	Pressure PN
1-S-R-W5-*-33-36	33	36	33,7/35	25	16	45	10	54	84	M6	0,2
1-S-R-W5-*-36-39	36	39	38	25	16	60	15	66	104	M8	0,4
1-S-R-W5-*-39-43	39	43	42,4	25	16	60	15	66	104	M8	0,4
1-S-R-W5-*-43-47,5	43	47,5	44,5	25	16	60	15	74	112	M8	0,4
1-S-R-W5-*-47,5-52,5	47,5	52,5	48,3	25	16	60	15	74	112	M8	0,4
1-S-R-W5-*-52,5-58	52,5	58	54/57	25	16	75	25	85	125	M8	0,6
1-S-R-W5-*-58-64	58	64	60,3/63	25	16	75	25	85	125	M8	0,6
1-S-R-W5-*-64-72	64	72	66,6/68/69/70	25	16	95	30	108	164	M10	1
1-S-R-W5-*-72-80	72	80	73/76,1/79,5	25	16	95	30	108	164	M10	1
1-S-R-W5-*-80-88	80	88	84	25	16	95	30	124	170	M10	1
1-S-R-W5-*-88-96	88	96	88,9	25	16	95	30	124	170	M10	1
1-S-R-W5-*-97-105	97	105	98/100,6/101,6/104	25	16	95	30	141	187	M10	1,1
1-S-R-W5-*-104-112	104	112	104,8/108/110	25	16	95	30	141	187	M10	1,1
1-S-R-W5-*-112-120	112	120	114,3/118	25	16	95	30	158	202	M10	1,2
1-S-R-W5-*-122-130	122	130	125/127/129	25	16	95	30	158	202	M10	1,2
1-S-R-W5-*-129-137	129	137	130,2/131/133	25	16	110	40	178	230	M12	2,1
1-S-R-W5-*-137-145	137	145	139,7/141,3/141,6	25	16	110	40	186	238	M12	2,2
1-S-R-W5-*-149-157	149	157	154/155	25	16	110	40	197	249	M12	2,3
1-S-R-W5-*-157-165	157	165	159	25	16	110	40	205	255	M12	2,3
1-S-R-W5-*-164-172	164	172	165/168,3	25	16	110	40	212	262	M12	2,4

2-S2-R-B-W5-*-172-198	172	198	185/187/190/191/193,7/195/196/197	25	16	140	40	236	262	M12	7,8
2-S2-R-B-W5-*-197-223	197	223	211/212/215/216/217/219,1/220/222	25	16	140	40	261	287	M12	8,1
2-S2-R-B-W5-*-221-247	221	247	236/238/240/241/242/244/244,5/246	25	16	140	40	285	311	M12	8,39
2-S2-R-B-W5-*-250-276	250	276	264/268/267/271/272/273,1/274/275	25	16	140	40	314	340	M12	8,74
2-S2-R-C-W5-*-275-301	275	301	290/292/295/296/298/300	25	16	142	40	339	365	M12	10,84
2-S2-R-C-W5-*-302-328	302	328	315/316/318/320/321/323,9/326/327	25	16	142	40	366	392	M12	11,27
2-S2-R-C-W5-*-327-353	327	353	340/342/343/345/346/348/350/352	25	16	142	40	391	417	M12	11,67
2-S2-R-G-W5-*-348-374	348	374	367/368/372	25	16	146	40	412	438	M16	16,1
2-S2-R-G-W5-*-374-400	374	400	388/392/394/395/396/398/399	25	16	146	40	438	464	M16	16,75
2-S2-R-G-W5-*-399-425	399	425	419/420/421	25	16	146	40	463	489	M16	17,38
2-S2-R-G-W5-*-425-451	425	451	439/440/441/442/444/448/450	25	16	146	40	489	515	M16	18,03
2-S2-R-G-W5-*-447-473	447	473	464/468/470	25	16	146	40	511	537	M16	18,58
2-S2-R-G-W5-*-475-501	475	501	490/492/494/496/498/500	25	16	146	40	539	565	M16	19,28
2-S2-R-G-W5-*-490-516	490	516	504/506/507/508/510/512/514/515	25	16	146	40	554	580	M16	19,66
2-S2-R-G-W5-*-507-533	507	533	520/521/524/526/530/532	25	16	146	40	575	603	M16	20,08
2-S2-R-G-W5-*-533-559	533	559	546/548/549/550/558	25	16	146	40	601	629	M16	20,74
2-S2-R-G-W5-*-558-584	558	584	571/572/574/576/582/583	25	16	146	40	626	654	M16	21,36
2-S2-R-G-W5-*-587-613	587	613	600/605/606/609,6/610/612	25	16	146	40	655	683	M16	22,09
2-S2-R-G-W5-*-615-641	615	641	630/632/633/634/635/640	25	16	146	40	683	711	M16	22,79
2-S2-R-G-W5-*-635-661	635	661	650/651/654/655/658/659/660	25	16	146	40	703	731	M16	23,29
2-S2-R-G-W5-*-663-689	663	689	676/677/678/680/686/688	25	16	146	40	731	759	M16	23,99
2-S2-R-G-W5-*-687-713	687	713	702,6/705/710/711,2	25	16	146	40	755	783	M16	24,6
2-S2-R-G-W5-*-704-730	704	730	718/720/726/729	25	16	146	40	772	800	M16	25,02
2-S2-R-G-W5-*-719-745	719	745	734/735/738/743/744	25	16	146	40	787	815	M16	25,4
2-S2-R-G-W5-*-756-782	756	782	760/761/762/768/769/770/773/780	25	16	146	40	824	852	M16	26,08
2-S2-R-G-W5-*-782-808	782	808	784/786/790/798/800/801/806	25	16	146	40	850	878	M16	26,73
2-S2-R-G-W5-*-806-832	806	832	807,2/808/812,8/820/822/824/826/830	25	16	146	40	874	902	M16	27,33
2-S2-R-G-W5-*-828-854	828	854	832/840/842/848/852	25	16	146	40	896	924	M16	27,88
2-S2-R-G-W5-*-856-882	856	882	859,5/864/868/869/879/880	25	16	146	40	924	952	M16	28,58
2-S2-R-G-W5-*-882-908	882	908	886/891/896/900/903/905,8	25	16	146	40	950	978	M16	29,23
2-S2-R-G-W5-*-904-930	904	930	912,4/914,4/915/920/924/927/928	25	16	146	40	972	1000	M16	29,79

2-S2-R-A-W5-*-172-198	172	198	185/187/190/191/193,7/195/196/197	16	10	138	40	236	262	M12	6,41
2-S2-R-A-W5-*-197-223	197	223	211/212/215/216/217/219,1/220/222	16	10	138	40	261	287	M12	6,61
2-S2-R-A-W5-*-221-247	221	247	236/238/240/241/242/244/244,5/246	16	10	138	40	285	311	M12	6,8
2-S2-R-A-W5-*-250-276	250	276	264/268/267/271/272/273,1/274/275	16	10	138	40	314	340	M12	7,02
2-S2-R-B-W5-*-275-301	275	301	290/292/295/296/298/300	16	10	140	40	339	365	M12	9,05
2-S2-R-B-W5-*-302-328	302	328	315/316/318/320/321/323,9/326/327	16	10	140	40	366	392	M12	9,37
2-S2-R-B-W5-*-327-353	327	353	340/342/343/345/346/348/350/352	16	10	140	40	391	417	M12	9,67
2-S2-R-C-W5-*-348-374	348	374	367/368/372	16	10	142	40	412	438	M12	12,01
2-S2-R-C-W5-*-374-400	374	400	388/392/394/395/396/398/399	16	10	142	40	438	464	M12	12,43
2-S2-R-C-W5-*-399-425	399	425	419/420/421	16	10	142	40	463	489	M12	12,83
2-S2-R-C-W5-*-425-451	425	451	439/440/441/442/444/448/450	16	10	142	40	489	515	M12	13,25
2-S2-R-C-W5-*-447-473	447	473	464/468/470	16	10	142	40	511	537	M12	13,6
2-S2-R-C-W5-*-475-501	475	501	490/492/494/496/498/500	16	10	142	40	539	565	M12	14,05
2-S2-R-C-W5-*-490-516	490	516	504/506/507/508/510/512/514/515	16	10	142	40	554	580	M12	14,29
2-S2-R-C-W5-*-507-533	507	533	520/521/524/526/530/532	16	10	142	40	575	603	M12	14,57
2-S2-R-C-W5-*-533-559	533	559	546/548/549/550/558	16	10	142	40	601	629	M12	14,99
2-S2-R-C-W5-*-558-584	558	584	571/572/574/576/582/583	16	10	142	40	626	654	M12	15,39
2-S2-R-C-W5-*-587-613	587	613	600/605/606/609,6/610/612	16	10	142	40	655	683	M12	15,85
2-S2-R-C-W5-*-615-641	615	641	630/632/633/634/635/640	16	10	142	40	683	711	M12	16,3
2-S2-R-C-W5-*-635-661	635	661	650/651/654/655/658/659/660	16	10	142	40	703	731	M12	16,63
2-S2-R-C-W5-*-663-689	663	689	676/677/678/680/686/688	16	10	142	40	731	759	M12	17,08
2-S2-R-C-W5-*-687-713	687	713	702,6/705/710/711,2	16	10	142	40	755	783	M12	17,46
2-S2-R-C-W5-*-704-730	704	730	718/720/726/729	16	10	142	40	772	800	M12	17,74
2-S2-R-C-W5-*-719-745	719	745	734/735/738/743/744	16	10	142	40	787	815	M12	17,98
2-S2-R-C-W5-*-756-782	756	782	760/761/762/768/769/770/773/780	16	10	142	40	824	852	M16	18,41
2-S2-R-C-W5-*-782-808	782	808	784/786/790/798/800/801/806	16	10	142	40	850	878	M16	18,83
2-S2-R-C-W5-*-806-832	806	832	807,2/808/812,8/820/822/824/826/830	16	10	142	40	874	902	M16	19,22
2-S2-R-C-W5-*-828-854	828	854	832/840/842/848/852	16	10	142	40	896	924	M16	19,57
2-S2-R-C-W5-*-856-882	856	882	859,5/864/868/869/879/880	16	10	142	40	924	952	M16	20,02
2-S2-R-C-W5-*-882-908	882	908	886/891/896/900/903/905,8	16	10	142	40	950	978	M16	20,44
2-S2-R-C-W5-*-904-930	904	930	912,4/914,4/915/920/924/927/928	16	10	142	40	972	1000	M16	20,79
2-S2-R-G-W5-*-936-962	936	962	940/945/950/951/952/956/960	16	10	146	40	1004	1032	M16	30,59
2-S2-R-G-W5-*-961-987	961	987	964,2/965/970/977/978/984,5	16	10	146	40	1029	1057	M16	31,21
2-S2-R-G-W5-*-984-1010	984	1010	989/990/992/996/1000/1008	16	10	146	40	1052	1080	M16	31,79
2-S2-R-G-W5-*-1004-1030	1004	1030	1015/1016/1020/1024/1027	16	10	146	40	1072	1100	M16	32,29
2-S2-R-G-W5-*-1044-1070	1044	1070	1044/1048/1054/1057/1068,3	16	10	146	40	1116	1146	M16	33,3
2-S2-R-G-W5-*-1076-1102	1076	1102	1080/1086/1090,2/1100	16	10	146	40	1148	1178	M16	34,1
2-S2-R-G-W5-*-1104-1130	1104	1130	1118/1120,6/1128	16	10	146	40	1176	1206	M16	34,8
2-S3-R-G-W5-*-1138-1177	1138	1177	1143/1144/1152/1167/1172,5/1174	16	10	146	40	1223	1253	M16	39,21
2-S3-R-G-W5-*-1192-1231	1192	1231	1200/1220/1228	16	10	146	40	1277	1307	M16	40,57
2-S3-R-G-W5-*-1241-1280	1241	1280	1255/1256/1261/1276,6	16	10	146	40	1326	1356	M16	41,8
2-S3-R-G-W5-*-1331-1370	1331	1370	1358	16	10	146	40	1416	1446	M16	44,05
2-S3-R-G-W5-*-1413-1452	1413	1452	1420/1422/1449	16	10	146	40	1498	1528	M16	46,11

2-S2-R-A-W5-*-264-290	264	290	278/280/284/286/287/288/289	10	6	138	40	328	354	M12	7,14
2-S2-R-A-W5-*-275-301	275	301	290/292/295/296/298/300	10	6	138	40	339	365	M12	7,22
2-S2-R-A-W5-*-302-328	302	328	315/316/318/320/321/323,9/326/327	10	6	138	40	366	392	M12	7,44
2-S2-R-A-W5-*-327-353	327	353	340/342/343/345/346/348/350/352	10	6	138	40	391	417	M12	7,63
2-S2-R-A-W5-*-348-374	348	374	367/368/372	10	6	138	40	412	438	M12	7,8
2-S2-R-A-W5-*-374-400	374	400	388/392/394/395/396/398/399	10	6	138	40	438	464	M12	8
2-S2-R-A-W5-*-399-425	399	425	419/420/421	10	6	138	40	463	489	M12	8,2
2-S2-R-A-W5-*-425-451	425	451	439/440/441/442/444/448/450	10	6	138	40	489	515	M12	8,41
2-S2-R-A-W5-*-447-473	447	473	464/468/470	10	6	138	40	511	537	M12	8,58
2-S2-R-A-W5-*-475-501	475	501	490/492/494/496/498/500	10	6	138	40	539	565	M12	8,8
2-S2-R-A-W5-*-490-516	490	516	504/506/507/508/510/512/514/515	10	6	138	40	554	580	M12	8,92
2-S2-R-B-W5-*-507-533	507	533	520/521/524/526/530/532	10	6	140	40	575	603	M12	11,85
2-S2-R-B-W5-*-533-559	533	559	546/548/549/550/558	10	6	140	40	601	629	M12	12,16
2-S2-R-B-W5-*-558-584	558	584	571/572/574/576/582/583	10	6	140	40	626	654	M12	12,46
2-S2-R-B-W5-*-587-613	587	613	600/605/606/609,6/610/612	10	6	140	40	655	683	M12	12,81
2-S2-R-B-W5-*-615-641	615	641	630/632/633/634/635/640	10	6	140	40	683	711	M12	13,15
2-S2-R-B-W5-*-635-661	635	661	650/651/654/655/658/659/660	10	6	140	40	703	731	M12	13,39
2-S2-R-B-W5-*-663-689	663	689	676/677/678/680/686/688	10	6	140	40	731	759	M12	13,73
2-S2-R-B-W5-*-687-713	687	713	702,6/705/710/711,2	10	6	140	40	755	783	M12	14,02
2-S2-R-B-W5-*-704-730	704	730	718/720/726/729	10	6	140	40	772	800	M12	14,23
2-S2-R-B-W5-*-719-745	719	745	734/735/738/743/744	10	6	140	40	787	815	M12	14,41
2-S2-R-B-W5-*-756-782	756	782	760/761/762/768/769/770/773/780	10	6	140	40	824	852	M12	14,74
2-S2-R-B-W5-*-782-808	782	808	784/786/790/798/800/801/806	10	6	140	40	850	878	M12	15,05
2-S2-R-B-W5-*-806-832	806	832	807,2/808/812,8/820/822/824/826/830	10	6	140	40	874	902	M12	15,34
2-S2-R-B-W5-*-828-854	828	854	832/840/842/848/852	10	6	140	40	896	924	M12	15,61
2-S2-R-B-W5-*-856-882	856	882	859,5/864/868/869/879/880	10	6	140	40	924	952	M12	15,94
2-S2-R-B-W5-*-882-908	882	908	886/891/896/900/903/905,8	10	6	140	40	950	978	M12	16,26
2-S2-R-B-W5-*-904-930	904	930	912,4/914,4/915/920/924/927/928	10	6	140	40	972	1000	M12	16,52
2-S2-R-C-W5-*-936-962	936	962	940/945/950/951/952/956/960	10	6	142	40	1004	1032	M16	21,31
2-S2-R-C-W5-*-961-987	961	987	964,2/965/970/977/978/984,5	10	6	142	40	1029	1057	M16	21,71
2-S2-R-C-W5-*-984-1010	984	1010	989/990/992/996/1000/1008	10	6	142	40	1052	1080	M16	22,08
2-S2-R-C-W5-*-1004-1030	1004	1030	1015/1016/1020/1024/1027	10	6	142	40	1072	1100	M16	22,4
2-S2-R-C-W5-*-1044-1070	1044	1070	1044/1048/1054/1057/1068,3	10	6	142	40	1116	1146	M16	23,04
2-S2-R-C-W5-*-1076-1102	1076	1102	1080/1086/1090,2/1100	10	6	142	40	1148	1178	M16	23,56
2-S2-R-C-W5-*-1104-1130	1104	1130	1118/1120,6/1128	10	6	142	40	1176	1206	M16	24,01
2-S3-R-C-W5-*-1138-1177	1138	1177	1143/1144/1152/1167/1172,5/1174	10	6	142	40	1223	1253	M16	27,68
2-S3-R-C-W5-*-1192-1231	1192	1231	1200/1220/1228	10	6	142	40	1277	1307	M16	28,55
2-S3-R-C-W5-*-1241-1280	1241	1280	1255/1256/1261/1276,6	10	6	142	40	1326	1356	M16	29,34
2-S3-R-C-W5-*-1331-1370	1331	1370	1358	10	6	142	40	1416	1446	M16	30,79
2-S3-R-C-W5-*-1413-1452	1413	1452	1420/1422/1449	10	6	142	40	1498	1528	M16	32,11
2-S3-R-C-W5-*-1432-1471	1432	1471	1462/1468	10	6	142	40	1517	1547	M16	32,41

2-S2-R-A-W5-*-507-533	507	533	520/521/524/526/530/532	6	2,5	140	40	575	603	M12	11,85
2-S2-R-A-W5-*-533-559	533	559	546/548/549/550/558	6	2,5	140	40	601	629	M12	12,16
2-S2-R-A-W5-*-558-584	558	584	571/572/574/576/582/583	6	2,5	140	40	626	654	M12	12,46
2-S2-R-A-W5-*-587-613	587	613	600/605/606/609,6/610/612	6	2,5	140	40	655	683	M12	12,81
2-S2-R-A-W5-*-615-641	615	641	630/632/633/634/635/640	6	2,5	140	40	683	711	M12	13,15
2-S2-R-A-W5-*-635-661	635	661	650/651/654/655/658/659/660	6	2,5	140	40	703	731	M12	13,39
2-S2-R-A-W5-*-663-689	663	689	676/677/678/680/686/688	6	2,5	140	40	731	759	M12	13,73
2-S2-R-A-W5-*-687-713	687	713	702,6/705/710/711,2	6	2,5	140	40	755	783	M12	14,02
2-S2-R-A-W5-*-704-730	704	730	718/720/726/729	6	2,5	140	40	772	800	M12	14,23
2-S2-R-A-W5-*-719-745	719	745	734/735/738/743/744	6	2,5	140	40	787	815	M12	14,41
2-S2-R-A-W5-*-756-782	756	782	760/761/762/768/769/770/773/780	6	2,5	138	40	824	852	M12	14,94
2-S2-R-A-W5-*-782-808	782	808	784/786/790/798/800/801/806	6	2,5	138	40	850	878	M12	15,45
2-S2-R-A-W5-*-806-832	806	832	807,2/808/812,8/820/822/824/826/830	6	2,5	138	40	874	902	M12	15,92
2-S2-R-A-W5-*-828-854	828	854	832/840/842/848/852	6	2,5	138	40	896	924	M12	16,35
2-S2-R-A-W5-*-856-882	856	882	859,5/864/868/869/879/880	6	2,5	138	40	924	952	M12	16,9
2-S2-R-A-W5-*-882-908	882	908	886/891/896/900/903/905,8	6	2,5	138	40	950	978	M12	17,41
2-S2-R-A-W5-*-904-930	904	930	912,4/914,4/915/920/924/927/928	6	2,5	138	40	972	1000	M12	17,84
2-S2-R-B-W5-*-936-962	936	962	940/945/950/951/952/956/960	6	2,5	140	40	1004	1032	M12	25,85
2-S2-R-B-W5-*-961-987	961	987	964,2/965/970/977/978/984,5	6	2,5	140	40	1029	1057	M12	26,54
2-S2-R-B-W5-*-984-1010	984	1010	989/990/992/996/1000/1008	6	2,5	140	40	1052	1080	M12	27,17
2-S2-R-B-W5-*-1004-1030	1004	1030	1015/1016/1020/1024/1027	6	2,5	140	40	1072	1100	M12	27,72
2-S2-R-B-W5-*-1044-1070	1044	1070	1044/1048/1054/1057/1068,3	6	2,5	140	40	1116	1146	M12	28,82
2-S2-R-B-W5-*-1076-1102	1076	1102	1080/1086/1090,2/1100	6	2,5	140	40	1148	1178	M12	29,7
2-S2-R-B-W5-*-1104-1130	1104	1130	1118/1120,6/1128	6	2,5	140	40	1176	1206	M12	30,46
2-S3-R-B-W5-*-1138-1177	1138	1177	1143/1144/1152/1167/1172,5/1174	6	2,5	140	40	1223	1253	M12	31,48
2-S3-R-B-W5-*-1192-1231	1192	1231	1200/1220/1228	6	2,5	140	40	1277	1307	M12	32,96
2-S3-R-B-W5-*-1241-1280	1241	1280	1255/1256/1261/1276,6	6	2,5	140	40	1326	1356	M12	34,31
2-S3-R-B-W5-*-1331-1370	1331	1370	1358	6	2,5	140	40	1416	1446	M12	36,78
2-S3-R-B-W5-*-1413-1452	1413	1452	1420/1422/1449	6	2,5	140	40	1498	1528	M12	39,03
2-S3-R-B-W5-*-1432-1471	1432	1471	1462/1468	6	2,5	142	40	1517	1547	M12	39,55
2-S3-R-C-W5-*-1529-1568	1529	1568	1560/1565	6	2,5	142	40	1614	1644	M12	59,1
2-S4-R-C-W5-*-1620-1672	1620	1672	1620/1626/1640/1668	6	2,5	142	40	1718	1748	M12	62,71
2-S4-R-C-W5-*-1827-1879	1827	1879	1820/1829/1844/1875	6	2,5	142	40	1925	1955	M12	70,66
2-S4-R-C-W5-*-2000-2052	2000	2052	2020/2032/2048	6	2,5	142	40	2098	2128	M12	77,31
2-S4-R-C-W5-*-2038-2090	2038	2090	2082	6	2,5	142	40	2136	2166	M12	78,77

* E for EPDM, N for NBR, (V for VITON, Price on request)

UNI-REP couplings

Easy and quick pipe repairs with UNI-Rep

Download Installation Instructions

Get your installation guide by signing up.

Quality

Explore our other products

Explore our extensive range of pipeline accessories.

View all

Hegawa FastFit Extra Wide Range Reducing Couplings - Pipe Coupling

Hegawa Repair Clamp HS-3 - Pipe Repair Solution

Hegawa FastFit Wide Range Plus Couplings - Pipe Coupling

Hegawa Standard FittoSize Couplings - Pipe Coupling

View all

Connect

Request a Quote

We're here to assist you with your inquiries. Fill in the form below to request a quote.

Name

E-mail

Product

Message

I accept the Terms of Service

Connection

Tapping

Repair

New

UNI-REP couplings

UNI-REP couplings

No time consuming repairs with our light-weight repair coupling

UNI-REP couplings

UNI-REP couplings

Download Installation Instructions

Quality

Explore our other products

Connect

Request a Quote

Products

Solutions
